Ses Efekt Pedalı

THE BUZZ

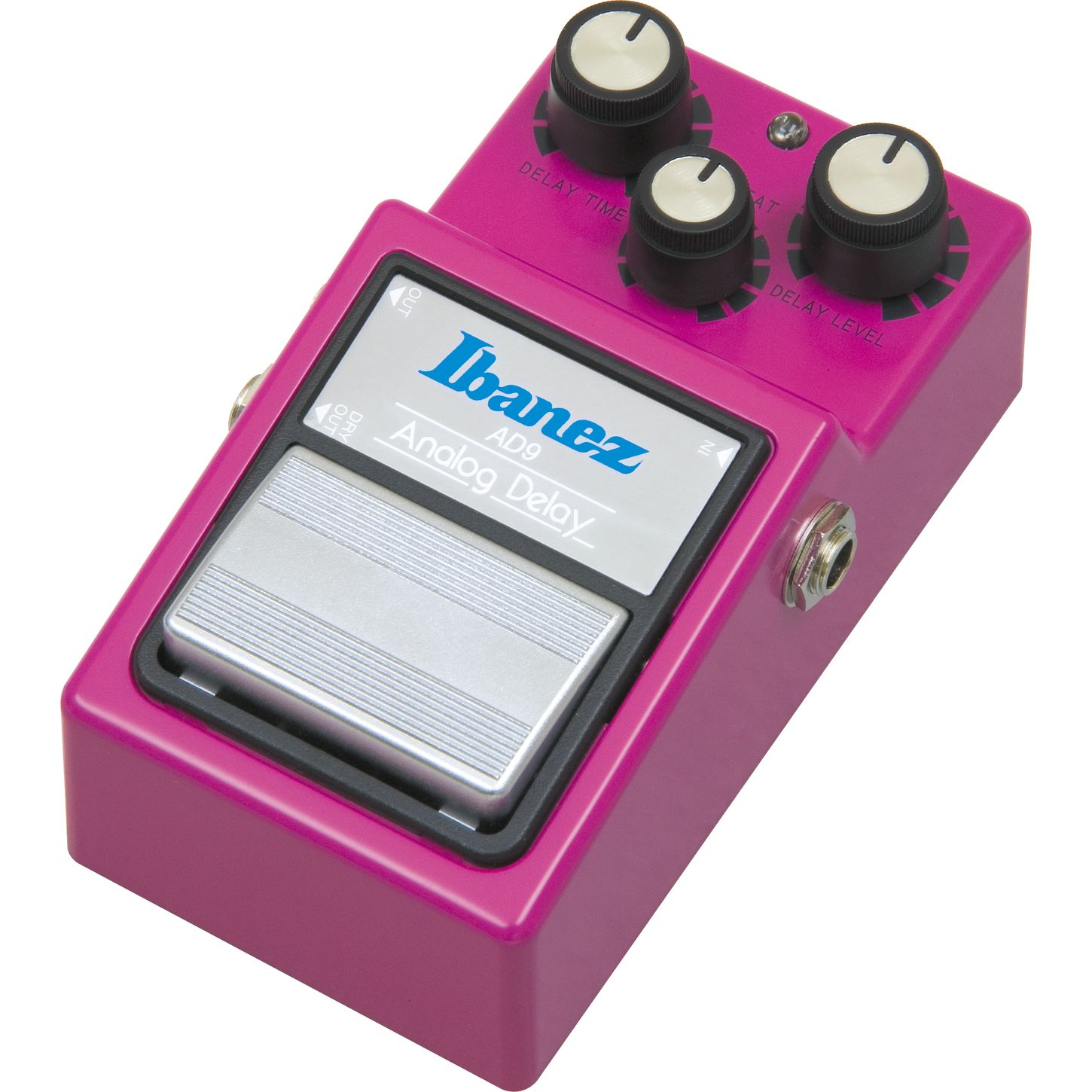

The Ibanez AD9 Analog Delay Effect Pedal uses a compander with pre- and de-emphasis for an exceptionally clean delay. Time and level controls allow mixing between dry and delayed signals. Repeat control lets you adjust the number of repeats without runaway. 2 outputs enable dry and delayed signals to be routed separately.



SPECS

Input Impedance 500K ohms

Output Impedance 10K ohms

Maximum Input Level +5 dBv

Gain 0 dB

Delay Time 20ms - 300ms

Equivalent Input Noise - 100 dbm (IHF-A)

Power Supply One 9 Volt Battery or external AC adaptor (9V)

Size 124 (D) × 74 (W) × 53 (H) mm 4.9 (D) × 3 (W) × 2 (H) inch.

Weight 580g 1.3lbs
