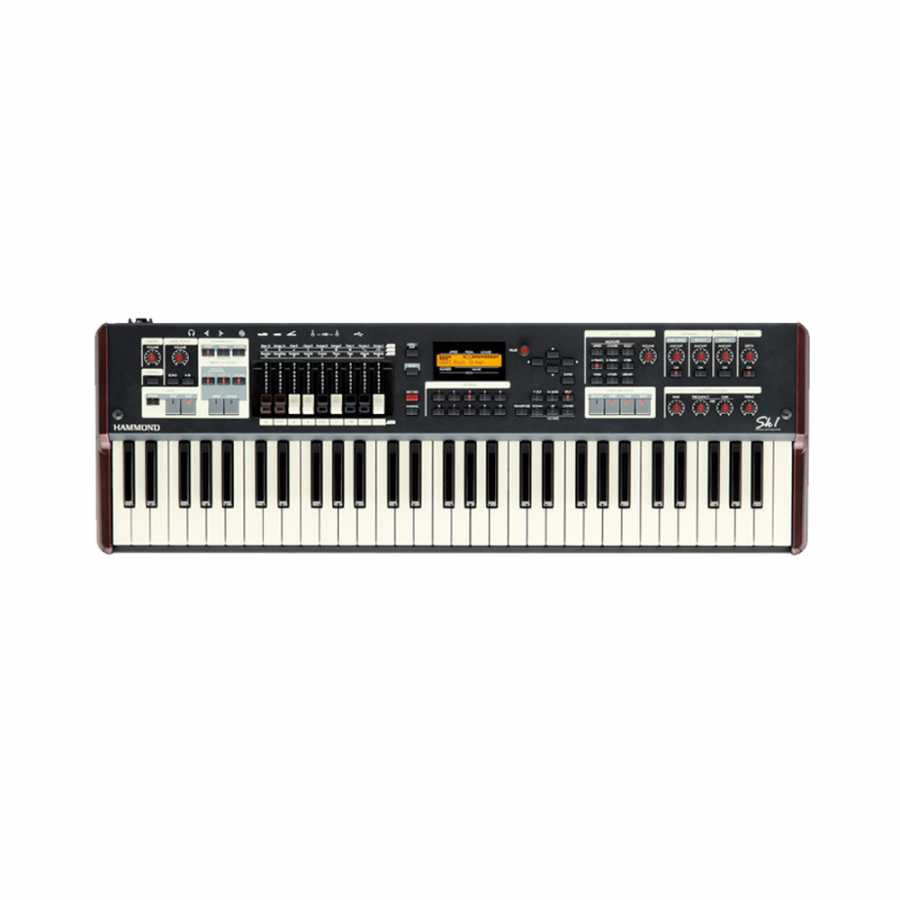

Hammond SK1 230V CE Org



Sound Generator

Organ Section
2 - VASE III as Digital Tone-wheels, Transistor Organ and Pipe Organ
61 polyphony (for manual, except Pipe Organ)
8 polyphony (for pedal, except Pipe Organ)
63 polyphony (maximum, on Pipe Organ)

Extra Voice Section
VASE III, 63 polyphony (maximum)

Keyboards
C1 to C6 61-key (SK1)

Harmonic Drawbars

Drawbars
9 Pitches, assignable for Upper, Pedal, Lower
Voicing
Manuals: 6 choices (B-Type1, B-Type2, Mellow, Vx, Farf, Pipe), valiable key-click,
Pedal: 4 choices (Normal, Muted, Synth1, Synth2), 5 choices key-click

Touch Response Percussion

Buttons
Second Harmonic, Third Harmonic, Fast Decay, Volume Soft

Adjustable
Touch, Velocity, Decay (Fast, Slow), Level (Normal, Soft)

Extra Voice

Instruments
6 Groups (A. Piano, E. Piano, Keyboard, Wind, Other, Library)
Upgradable via Library
Control
Allocate Upper/Lower, Solo, Group
Effects
Vibrato and Chorus
Digital Scanner
Buttons: 1, 2, Chorus, Upper On, Lower On

Overdrive
Digital, 4 programs
Control: On, Amount

Multi Effects
8 programs for Organ/Extra Voice individually
Control: On, Amount

Equalizer
for Organ: Bass, Mid (sweep), Treble, Tone
for Extra Voice: Bass, Mid (sweep), Treble

Internal Leslie
Advanced Digital, 2 Rotors
Buttons: Bypass, Stop, Fast

Reverb
Digital, 11 programs
Control: On, Depth

Master Equalizer
Control: Bass, Mid Gain, Mid Frequency, Treble

Keymap

Buttons
Manual Bass, Split (SK1 only), Lower to Pedal (SK2 only) Octave Up, Octave Down, Lower, Transpose

Adjustable
Coupler Highest note, Split Point

Patches

Capacity
100 User Patches, 100 Preset Patches, Manual

Favorites
10 buttons

Patch Load Options
Drawbar Registration, Drawbar Parameters, Extra Voice, Internal Zone, External Zone, Organ Effects, Exv Effects, Reverb

Controllers

Volumes
Master Volume, Music Volume, Extra Voice Volume

Switch
Power On/Off

Music Player

File Format
WAV (44.1kHz, 16bit, Stereo), MP3 (44.1kHz, 128kbps, Stereo)

Control
Song, Play/Pause

Storage
USB Flash Drive

Display
20 - Characters, 2 - Lines
8 Control Buttons and Value knob

MIDI

Templates
9 Templates(SK1), 5 Templates(SK2)

External Zones
3 Zones, assignable any keyboards

Connections

MIDI
In, Out

Audio
Line Out L, R, Headphones

Leslie
8 - pin, 1 and 3 channels available

Other
Foot Switch, Damper Pedal, Exp. Pedal, DC IN (12V)

Accessory
AC Adaptor AD3-1250

Dimensions
SK1: 35 1/4"(W) x 12"(D) x 3 7/8"(H)

Weight
SK1: 15 1/2 lb
