EDGE Series have the special concept beyond common design of existing preamps for acoustic guitar. Without mounting screws, EDGE series use Double Inner Clamp system which enables users to install with ease. This mechanism keeps solid wood side of guitar body from cracking caused by installation with screws. FLIP-HOOD Design of panel can save the room for battery case, so it make clean and concise face of panel. All EDGE EQs are applied to EMI process for basic option to reduce hum ideally, and equipped with PHASE switch for anti-feedback. This EQ series enables the color matching with various colors of half transparent and marble finish,  compared with other preamps which have the black color only. .

COMMON FEATURES
- Volume [min ~ max],
- 4 band EQ [-10dB ~ +10dB],
- Contour [flat ~ notch]
- Notch Band SW. [Hi / Low]
- Phase SW.
- Low Battery Indicator LED
- Chromatic Tuner

Dimensions:

H:90, W:56, D:42 (mm)

Fit for
Normal Thickness  body

The preamp includes:
  - standard jack
  - screws and wire-clip

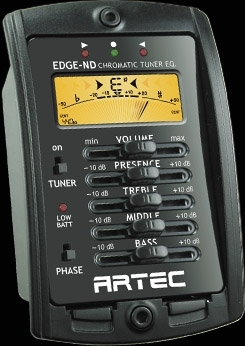

EDGE-ND is high precision meter-type LCD chromatic tuner with 4 band Eq. It also has orange color backlight. So it is easy to read when use dark place.   Electrically preamp and tuner circuits have separate power lines, so you can tune the guitar without plug in.
